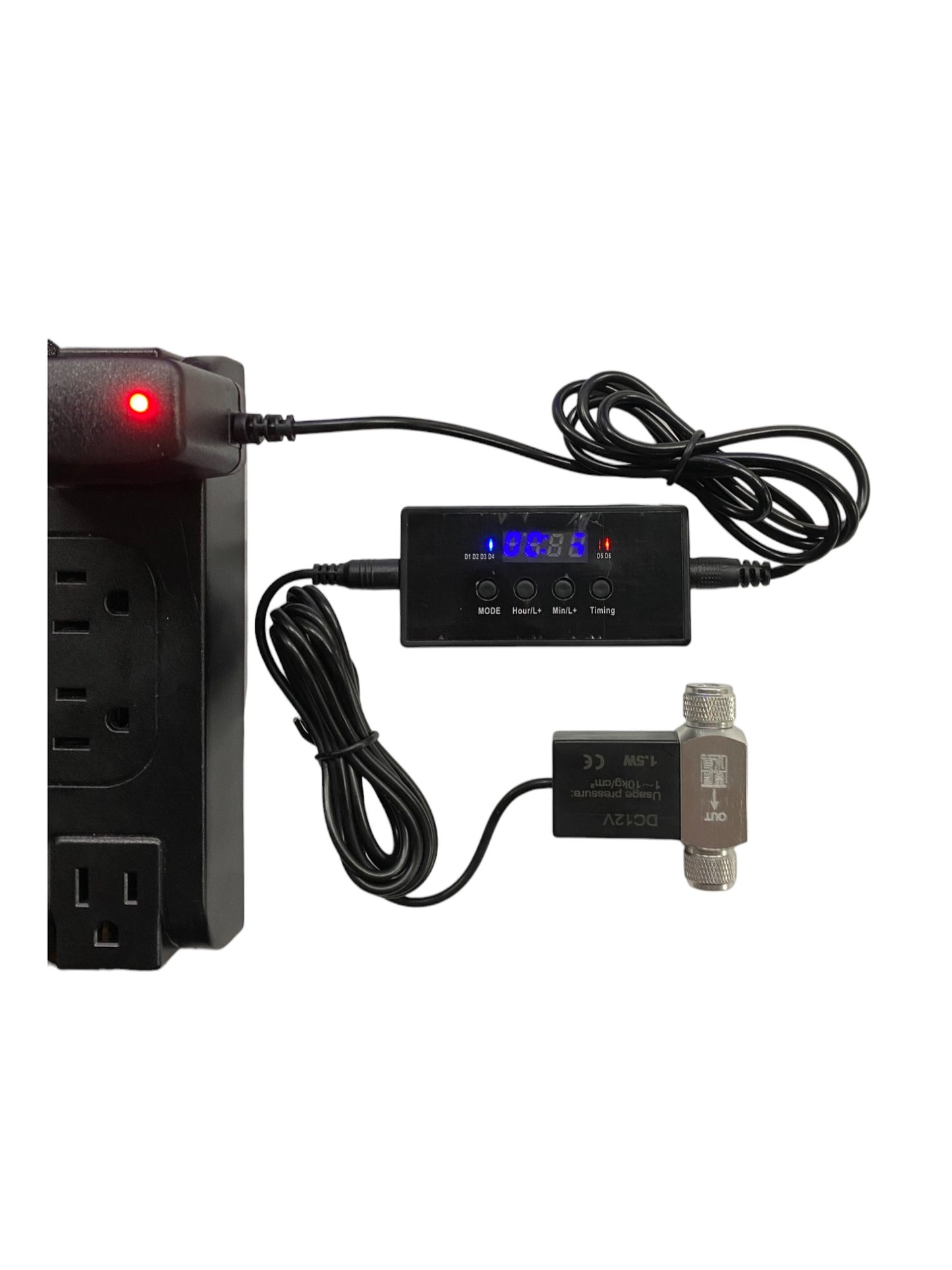

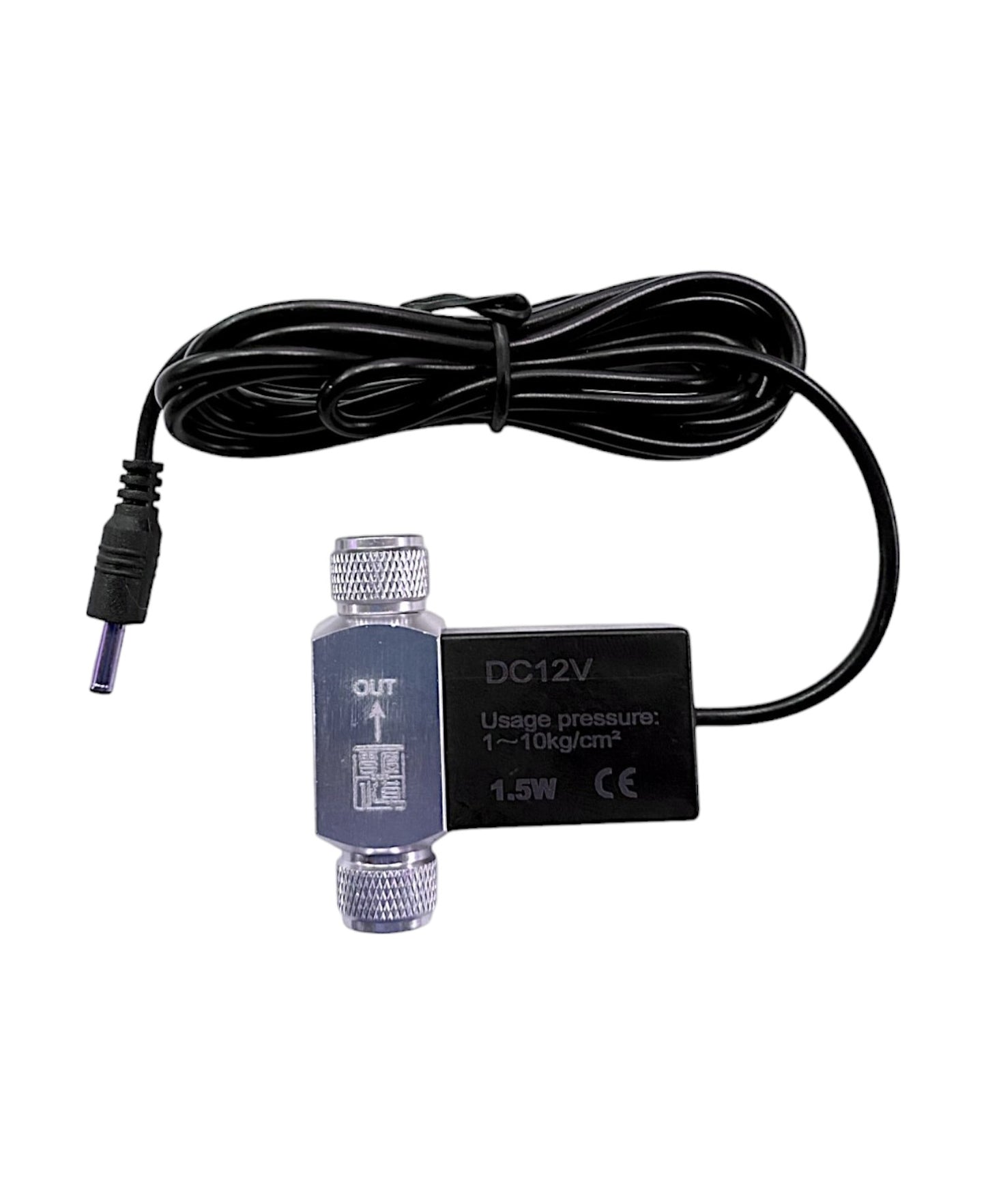

ZRDR CO2 Motor Valve Digital Display Timing Switch Pressure Reducing Valve

ZRDR CO2 Motor Valve Digital Display Timing Switch Pressure Reducing Valve

Double head version (same size heads) Part # X02-01B

If you need the Single head version (different size heads) order Part X02-01A

Unlike traditional Solenoid Valves that use magnetic force, the Motor Valve sends a timed signal to turn on or off the valve. This design greatly reduces the chance of overheating, as this function only takes a few seconds to preform. A Solenoid Valve uses magnetic force generated through the power supply. This force is constant keeping the valve in the open position, this design causes an unwanted heat. This heat over time greatly reduces the internal spring's service life. With the Motor Valve design this is greatly reduced to just a few seconds, this reduces the heat and extends the life of the Valve.

Features

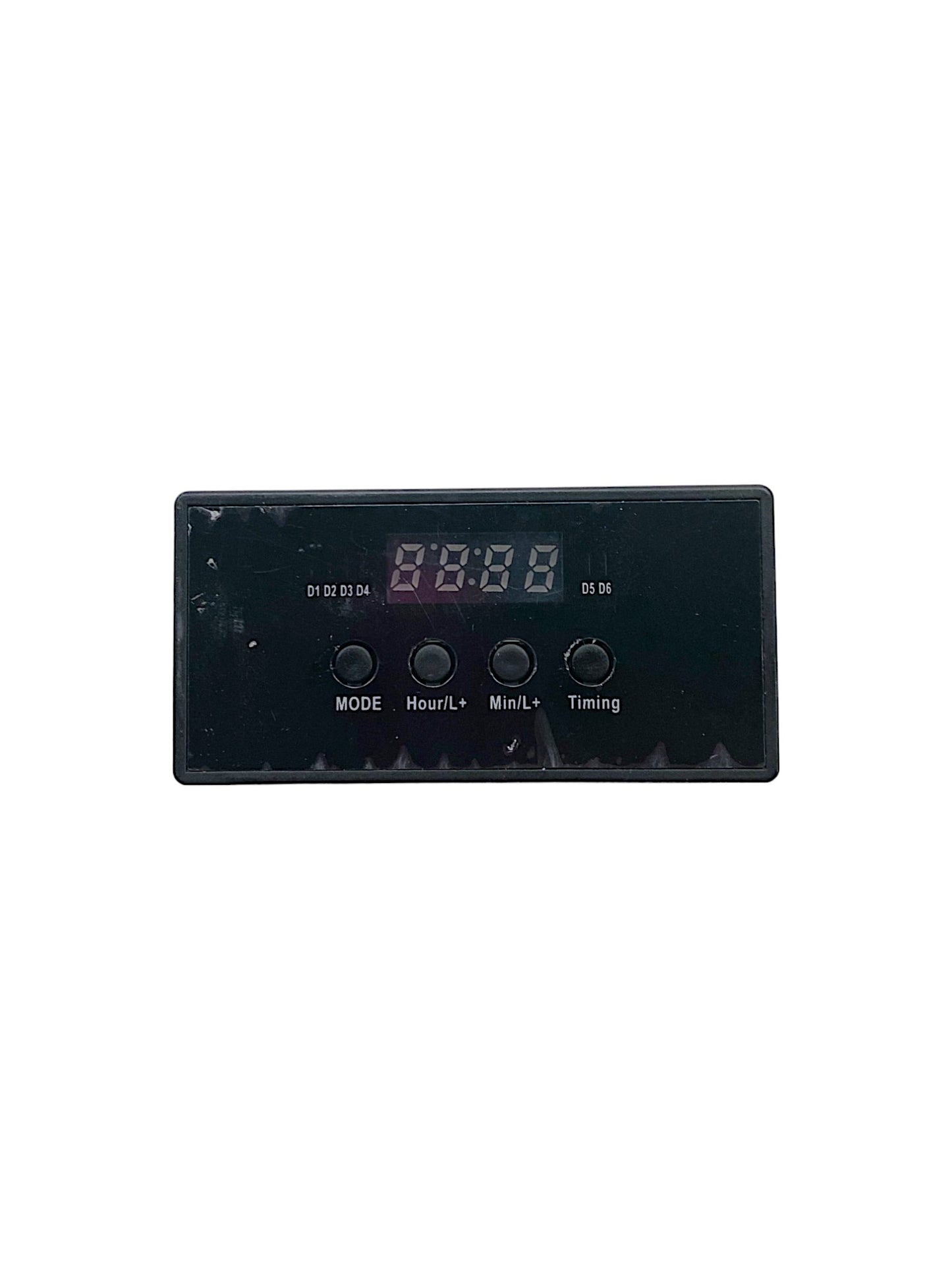

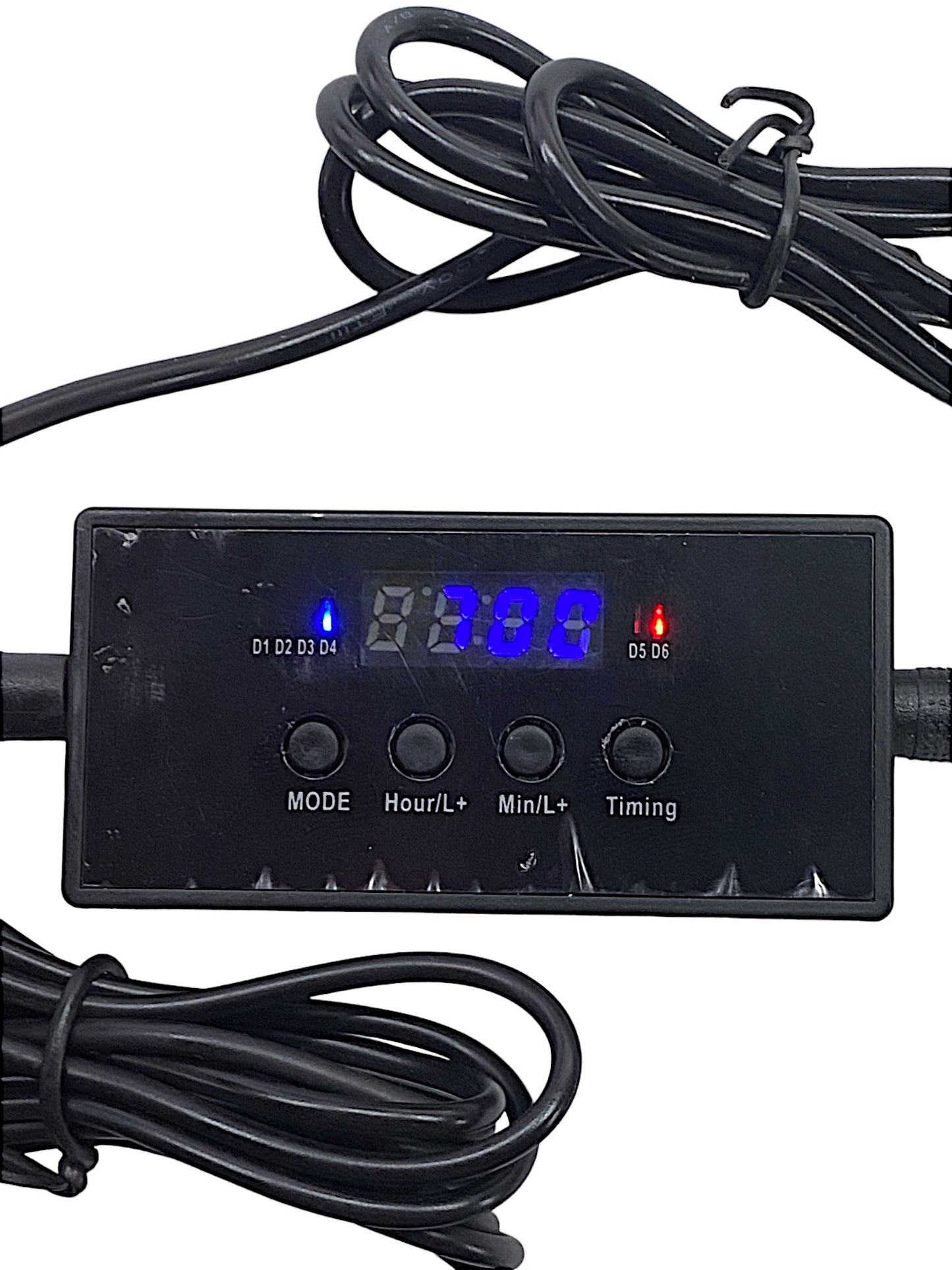

• Timer sets the open and close times of the Motor Value
• 5 seconds working time greatly reduces the continuous heating

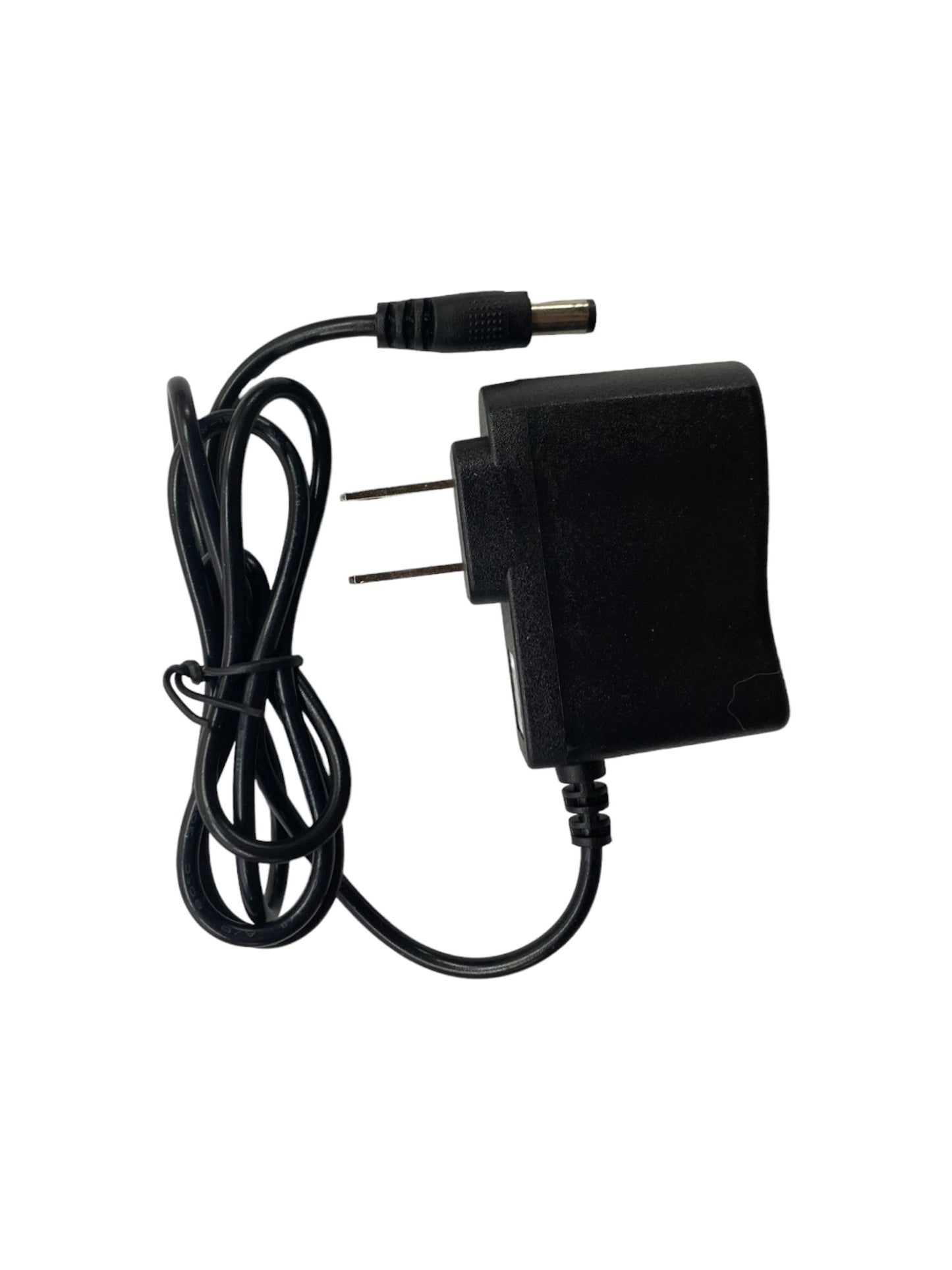

• Working Voltage - AC100-240V
• US Power Plug

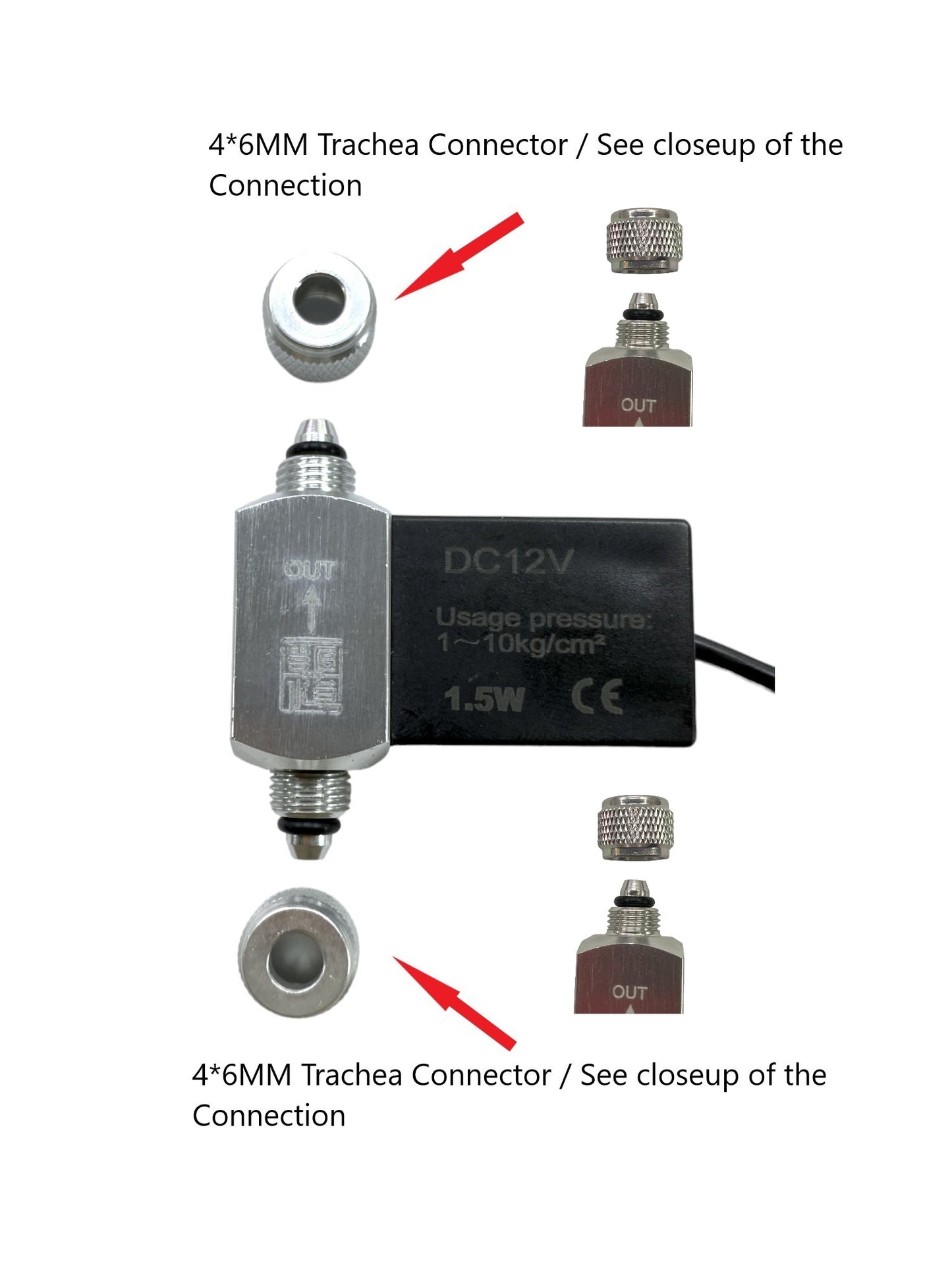

• Top (output) fitting 4*6MM
• Bottom (intake) fitting 4*6MM

Note - If you are in need of the Standard Solenoid Value Order one of the following.

• Part # W05A single head
• Part # W05B double head
