Ice Cap Gyre Interface Module Alternate Mode(Reversing) Cable Part IC-GIM-AGMCBL

Ice Cap Gyre Interface Module Alternate Mode(Reversing) Cable Part IC-GIM-AGMCBL

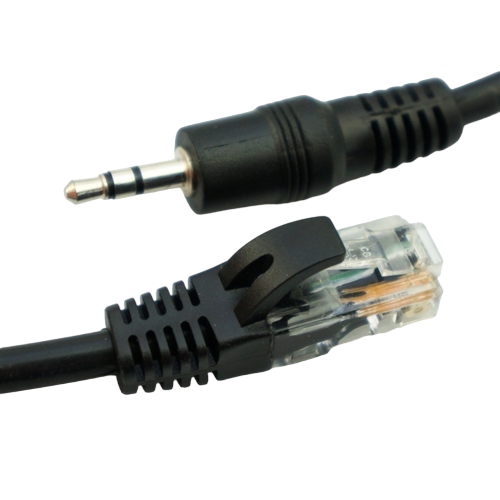

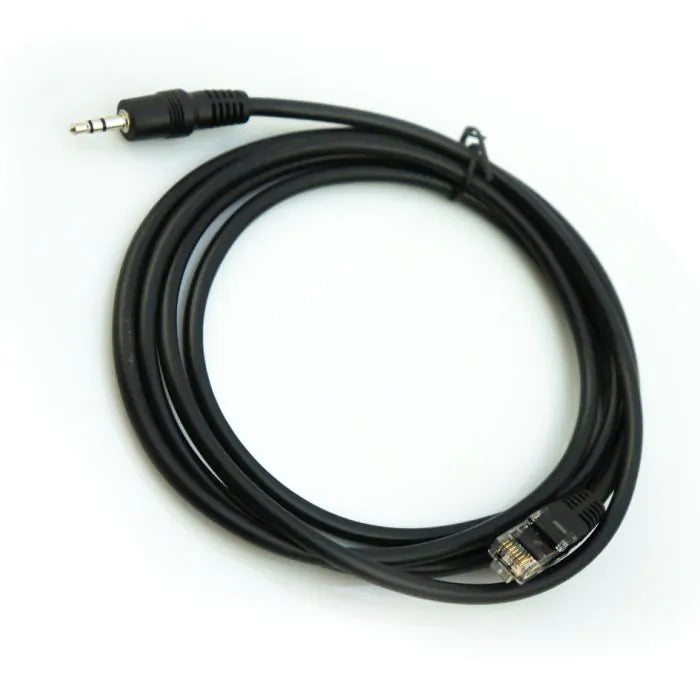

This 6.5ft cable allows you to run your Maxspect Gyre Generator in both forward and reverse direction by using one full Variable Speed port on your Neptune Systems Apex Controller to connect two 0-10v signals to a single Ice Cap XF150 Gyre Interface Module or Ice Cap XF130 Gyre Interface Module.

Apex Setup:

• First Setup two Variable Speed outlets to control a single gyre pump.
• The First variable speed outlet will control the speed of the pump.
• Set speeds ranging from 20% to 100%.
• Second variable speed outlet will control the direction of the pump flow.
• Setting - 0% will move in the forward direction. 100% will move in reverse direction.

* Notes -Requires a full Variable Speed port on your APEX Controller
