CoralVue Hydros IceCap Battery Backup V3 Cable Kit Part # HDRS-BTB-1314

CoralVue Hydros IceCap Battery Backup V3 Cable Kit Part # HDRS-BTB-1314

Connect your Hydros WaveEngine to the IceCap Battery Backup V3.

NOTE - Hydros WaveEngine is ONLY compatible with the IceCap Battery Backup V3

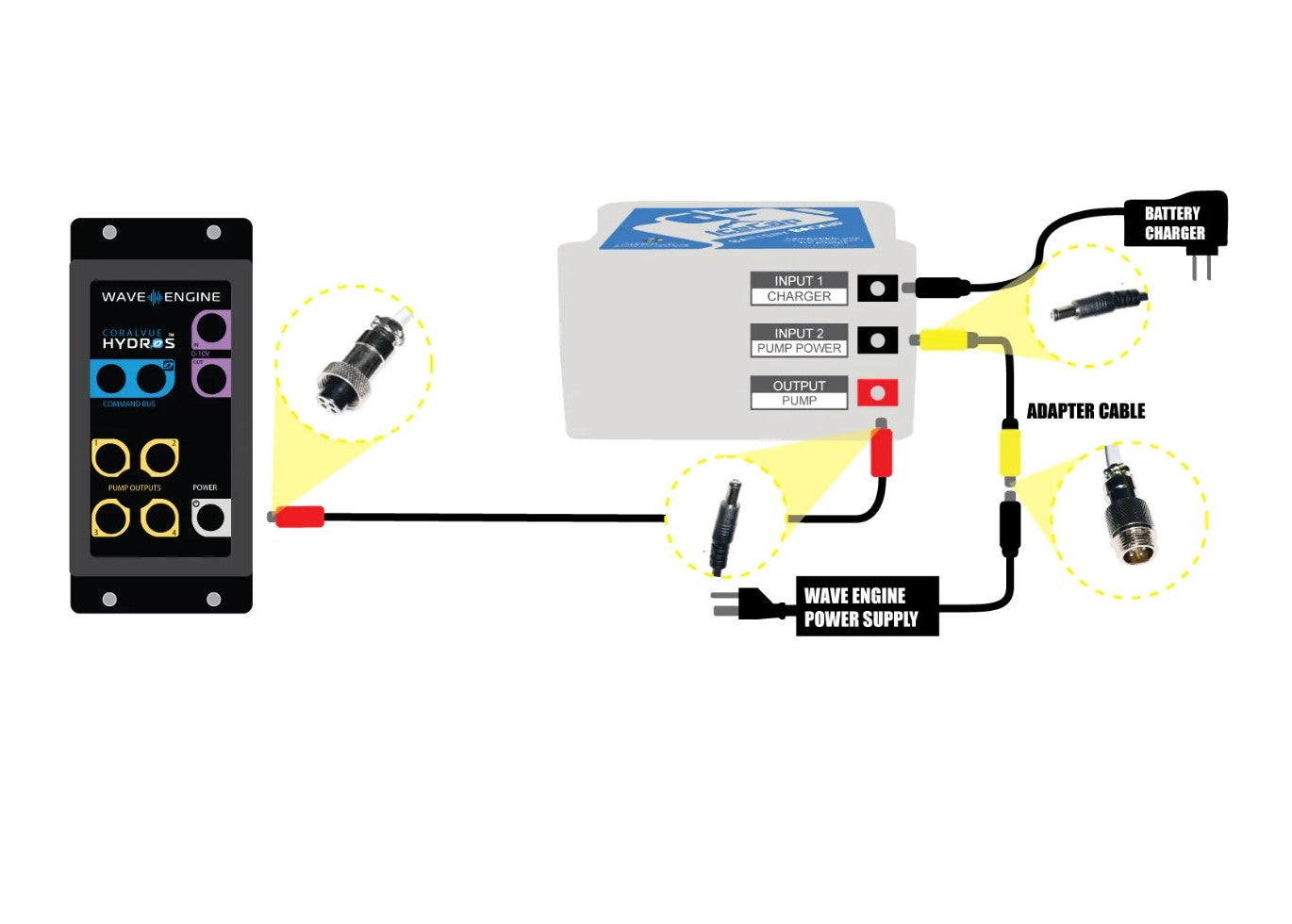

STEPS TO CONNECT

• Connect the HYDROS WaveEngine Power Supply to the battery kit cable using the female 4-pin GX12
• Connect the other end of this cable to the "Input: Pump Power Supply" port on the side of the IceCap Battery
• Connect the battery kit cable with the male 4-pin GX12 connector to the WaveEngine power port.
• Connect the other end of this cable to the "Output: Pump" port on the side of the IceCap Battery
• Connect the smaller IceCap Battery Backup power supply to the "Input: Charger" port on the side of the IceCap Battery
